Description

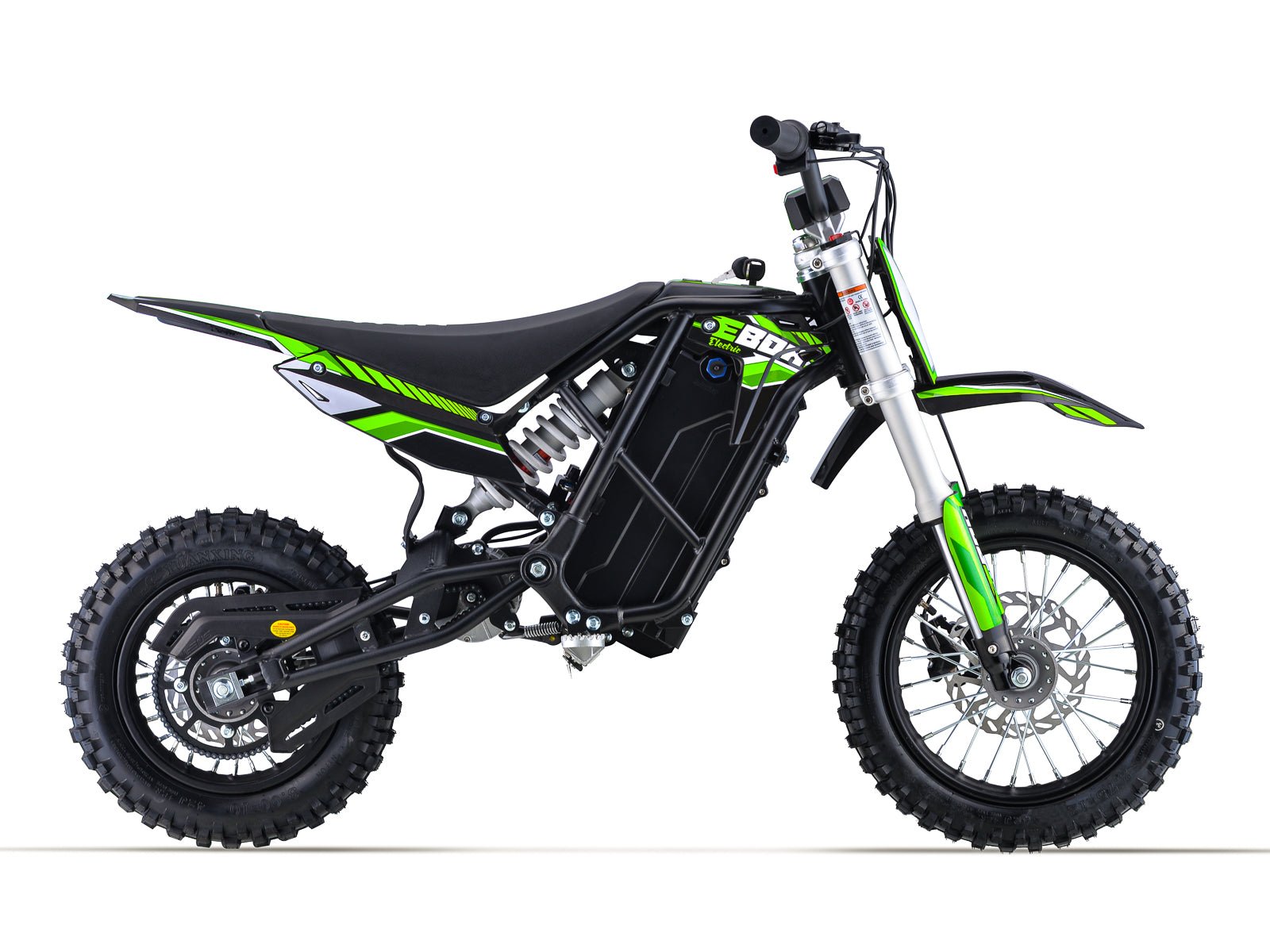

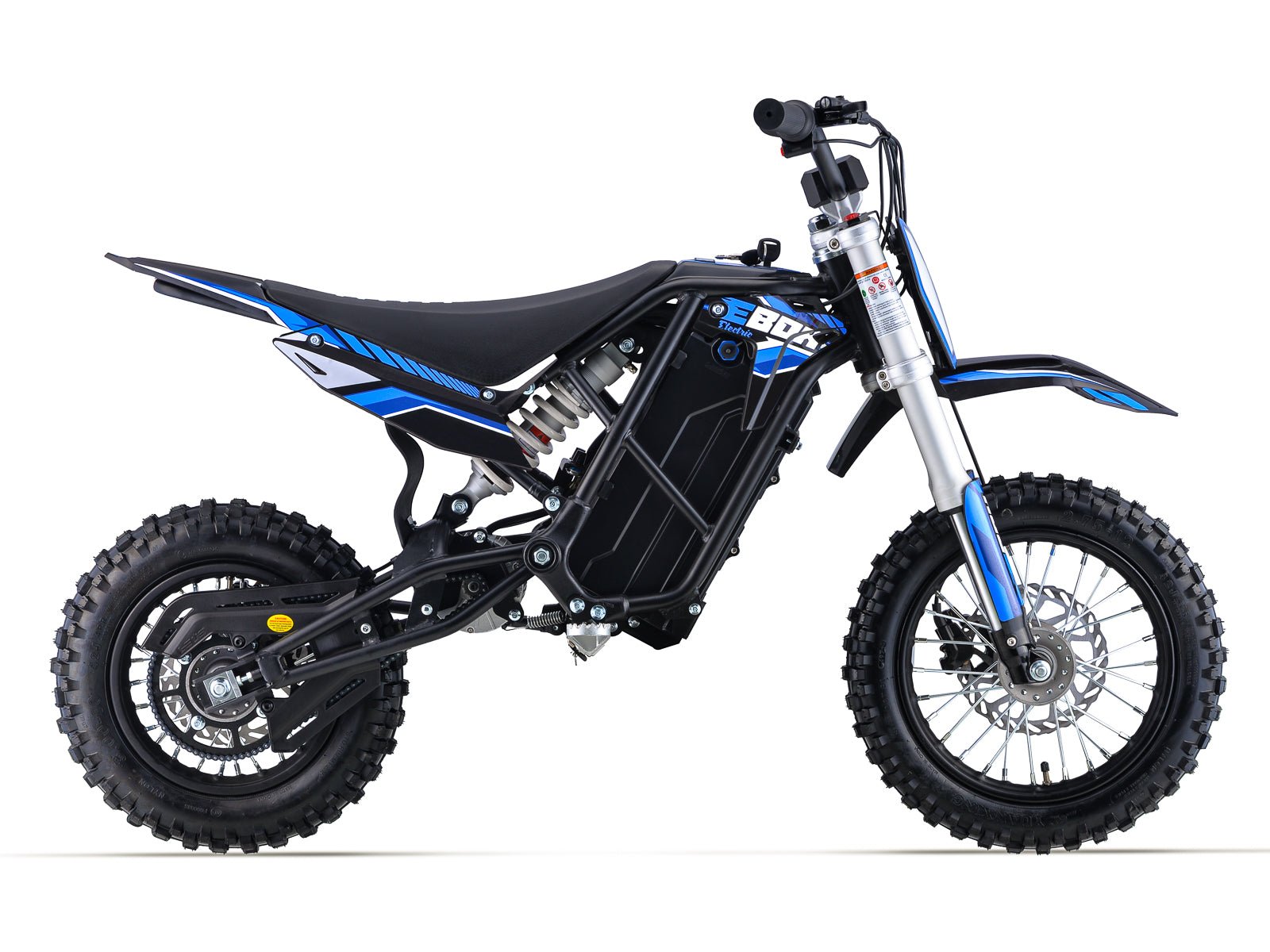

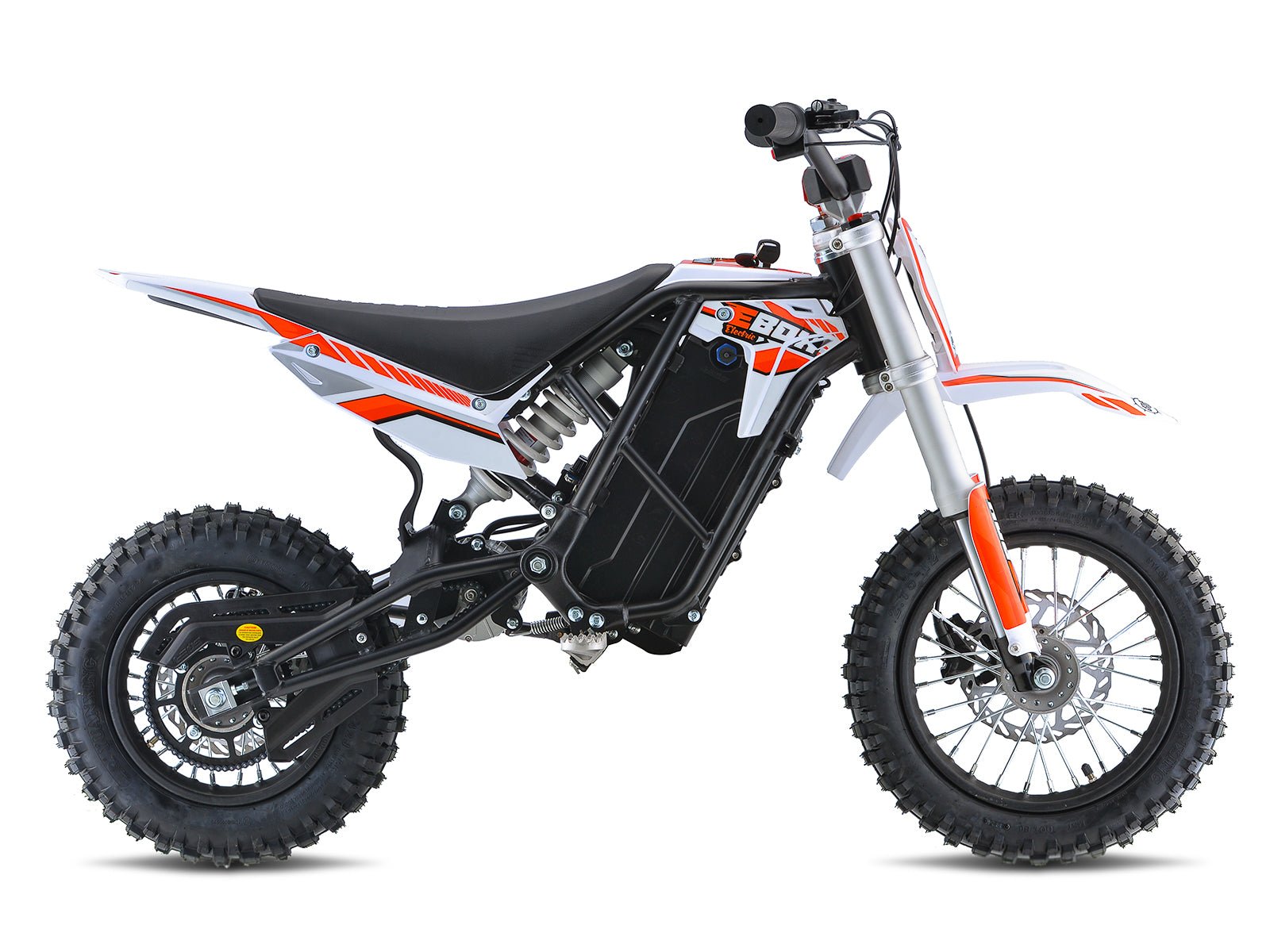

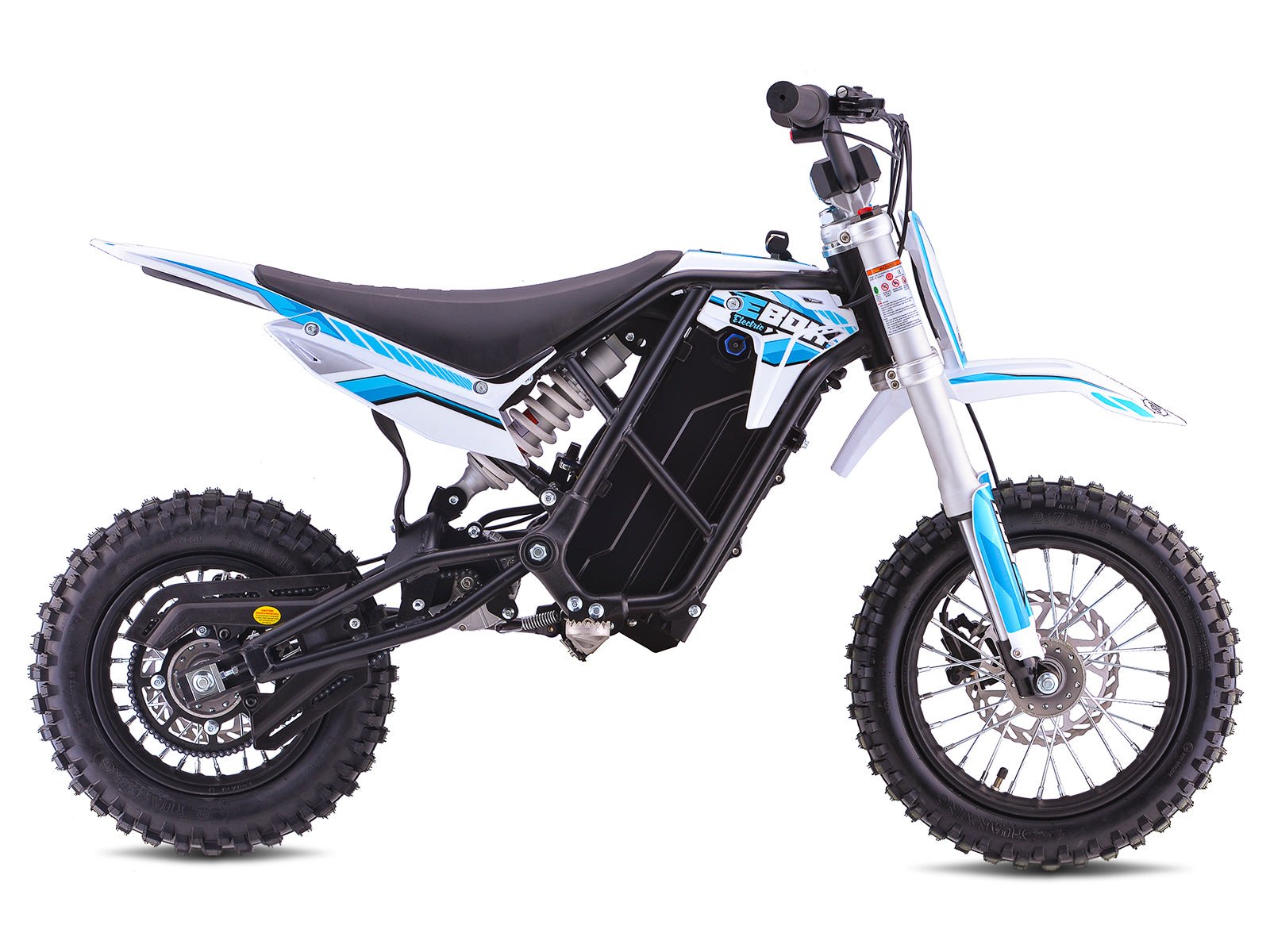

Stomp is proud to announce the introduction of the first of its EBOX range, the 48v 1.6kw EBOX 1. Designed from the ground up to be lightweight, powerful and outperform any other sub £3000, 12/10” bike on the market.
EBOX 1 is a 1.6 KW lithium battery / brushless motor combination that packs an astonishing punch. So-much-so, during development we had to add speed-controller adjustment because it was literally too savage. The benefit is that EBOX1 can be controlled to perfection, dialled down for entry level riding and turned up when you are ready to pin it to clear that table.
EBOX 1 will easily pull wheelies off the throttle with a 90 kg adult rider and top-out (quickly) at around 28 mph (more than enough for track use).
Aimed at entry level riders from 6 years up, the EBOX 1 is fully compliant with CE and UKCA testing standards. This is a proper bike for serious riders. The perfect, near-silent stepping-stone for every kid with motocross dreams!
A solid hours riding is easily achieved at full power settings and that can be extended by changing the battery should you need more track time.
Key features: charge level indicators, lightweight disk brakes, upside down forks, mono shock, 16.6 AH lithium battery and power delivery control.
Specification

FRAME TYPE
Double Cradle

FRONT WHEEL SIZE
12″

REAR WHEEL SIZE
10″

FRONT BRAKE
Hydraulic Disc

FRONT DISC
180mm

REAR BRAKE
Hydraulic Disc

REAR DISC
180mm

FRONT TYRE
12″ x 2.27″

REAR TYRE
10″ x 3″

CHAIN
219H

GEARING
Front 10T, Rear 70T

MAX LOAD
85kg

SHOCK TYPE
Mono shock

FORK TYPE
USD

HANDLEBAR
Aloy

MOTOR VOLTAGE
48v

PEAK POWER
1.6KW (2.1hp)

MAX RPM
4100

BATTERY
48V 15.6Ah Lithium

CONTROLLER OUTPUT
42A

CHARGER
AC 110-240V, output: 54.6V, 2A

CHARGE TIME
7-8 hours

RANGE PER CHANGE
28-30 Km

TOP SPEED
48 Km/h

EXTERNAL ADJUSTABILITY
Top speed, Acceleration

FRAME CONSTRUCTION
High strength steel, powder coated, removable subframe, swing arm mounted motor, non linkage suspension

WHEELBASE
920mm

GROUND CLEARANCE
235mm

SEAT HEIGHT
63cm
